55 gallon sump build

Updated Feb 25, 2010
Feb 28, 2010
materials you would need: paper towel,alcohol,tape measure,rafters square,oil,permanent marker,pen,sanding block,pliers,silicone,and of course glass cutter
Feb 28, 2010
Snapping Glass used a pen under neath to snap glass
Feb 25, 2010
55 gallon sump front view
Feb 28, 2010
Rounded the corners so it would not bother original silicone on tank
Feb 25, 2010
55 gallon sump side view
Feb 28, 2010

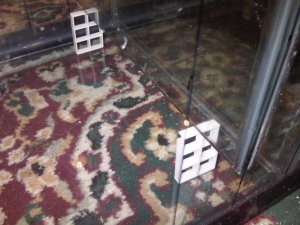

Shims for support
Feb 25, 2010
55 gallon sump front view large
Feb 28, 2010
Skimmer area 13x10x11 3/4 total volume 6.6 gallons
Feb 26, 2010
55 gallon sump rev
Feb 28, 2010
Baffle Layout
Feb 26, 2010
RODI unit
Feb 27, 2010
55 gallon revision 2
Feb 28, 2010
Fuge area 21x 15x11 3/4 total volume 16 gallons
Feb 26, 2010
WATER CONTROL UNIT
Feb 28, 2010
Complete Fuge
Feb 28, 2010
Complete Fuge 2 Skimmer 13x10x11 3/4- 6.6 gallons Fuge 21x15x11 3/4- 16 gallons Return 8 1/2x10x11 3/4- 4.3 gallons Baffles 2x10x11 3/4 2 gallons Total volume- 28.9 gallons
Feb 28, 2010
Return in center 8 1/2x10x11 3/4 total volume 4.3 gallons, Between baffles 2x 10x11 3/4 total volume 2 gallons
