Just got my grounding probe, info needed on connecting

Discussion in 'Filters, Pumps, etc..' started by nanomania, Sep 12, 2012.

to remove this notice and enjoy 3reef content with less ads. 3reef membership is free.

  1. nanomania

    nanomania Vagabond Butterfly

    Joined:
    May 23, 2011
    Messages:
    1,681
    Location:
    mumbai, india

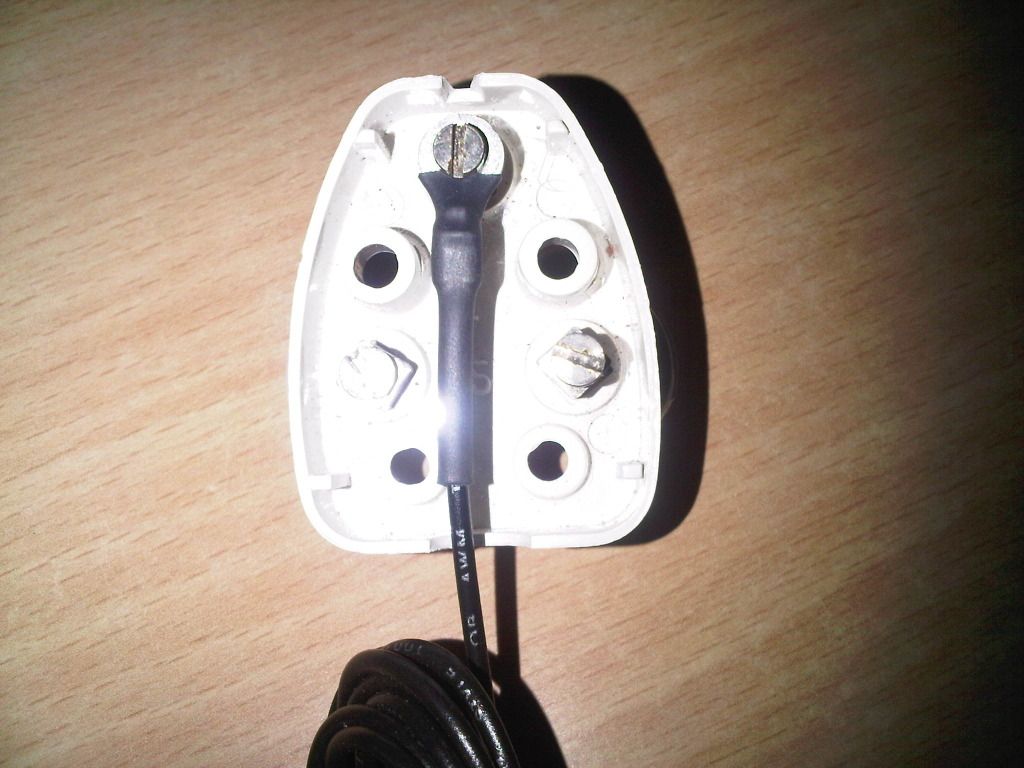

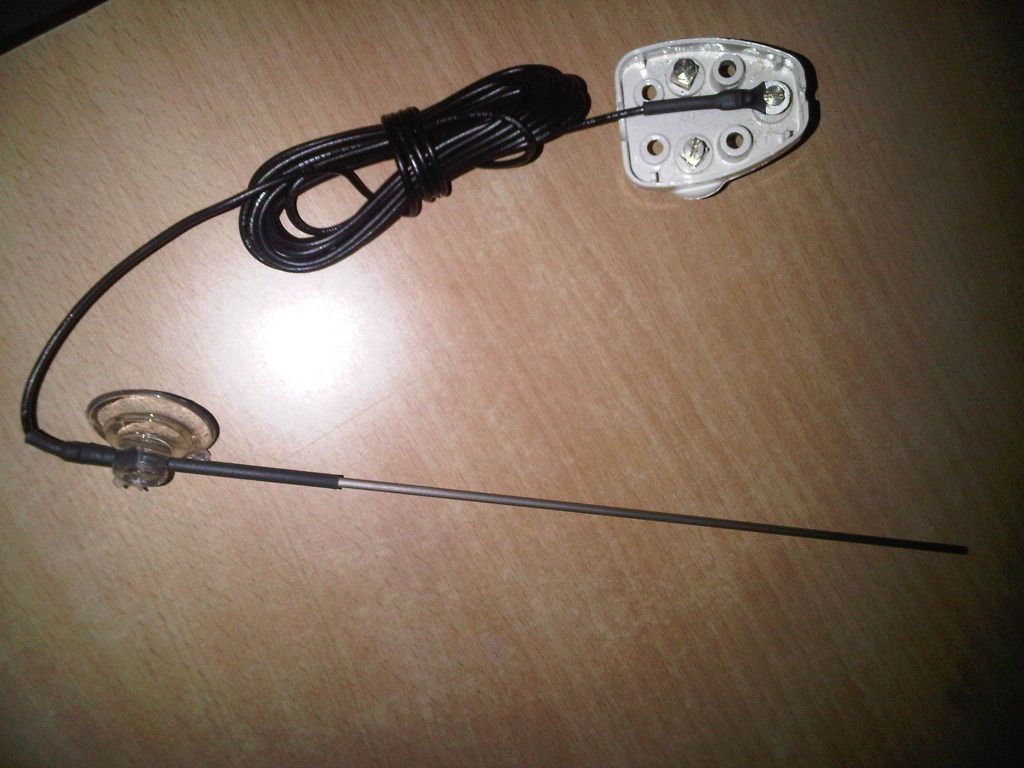

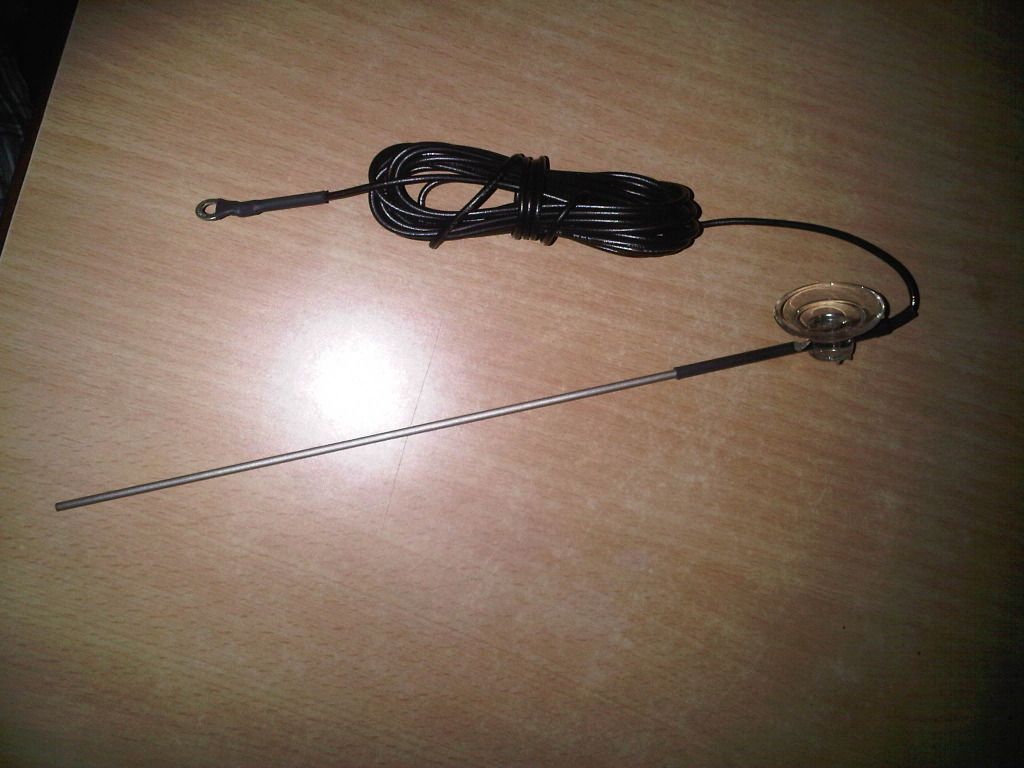

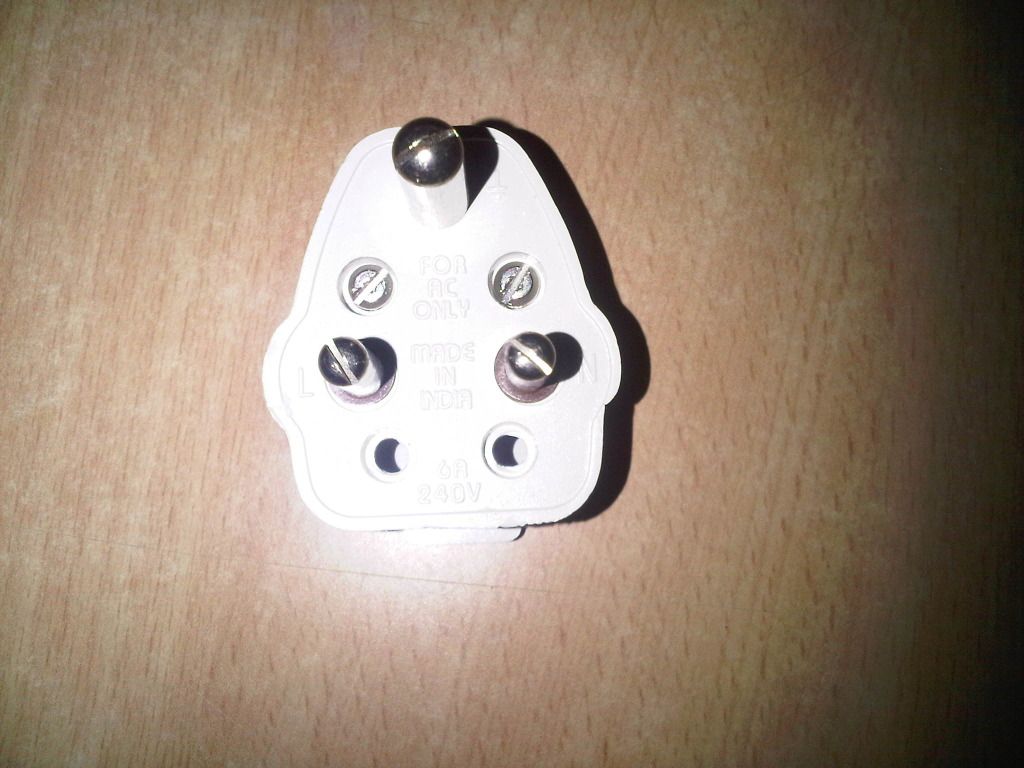

    Iv heard loads of good and bad things about it, please let me know. Here are the pics:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Click Here!

  3. nanomania

    nanomania Vagabond Butterfly

    Joined:
    May 23, 2011
    Messages:
    1,681
    Location:
    mumbai, india
    FOR GFCI:

    once, the lights im using has 3 pin. once i had attached just two pin by mistake and i got a shock. once i removed it, i saw that i had just attached 2 pin and the 3rd earthing (grounding) pin was not attached. once i attached that, i dint get the shock.

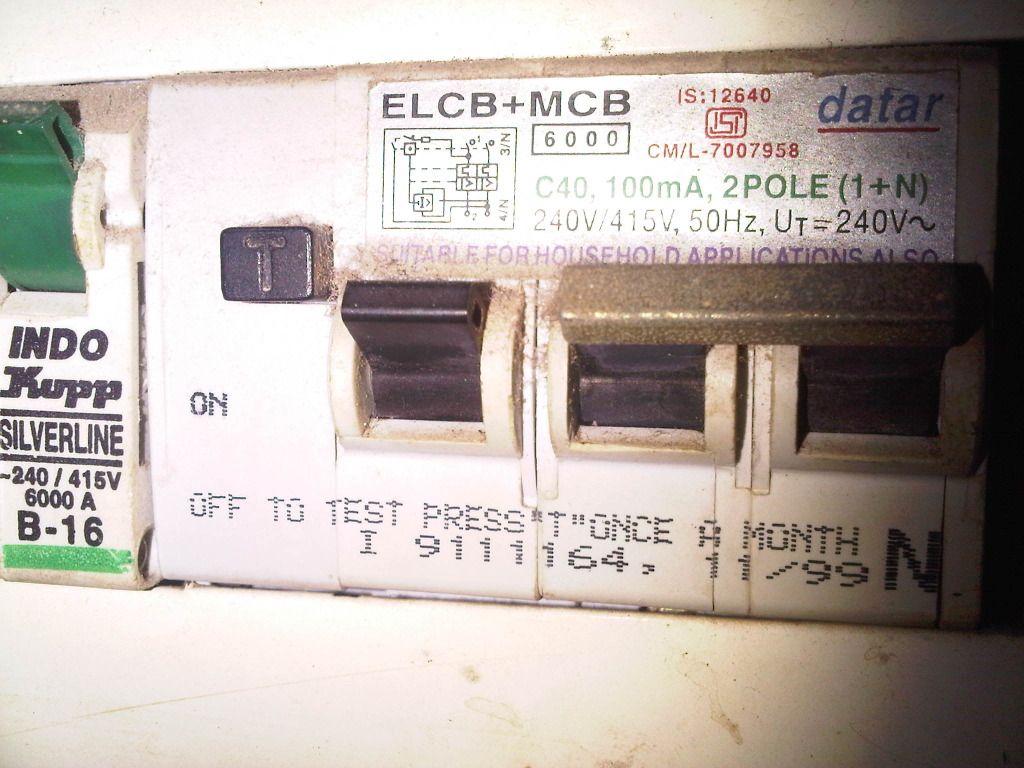

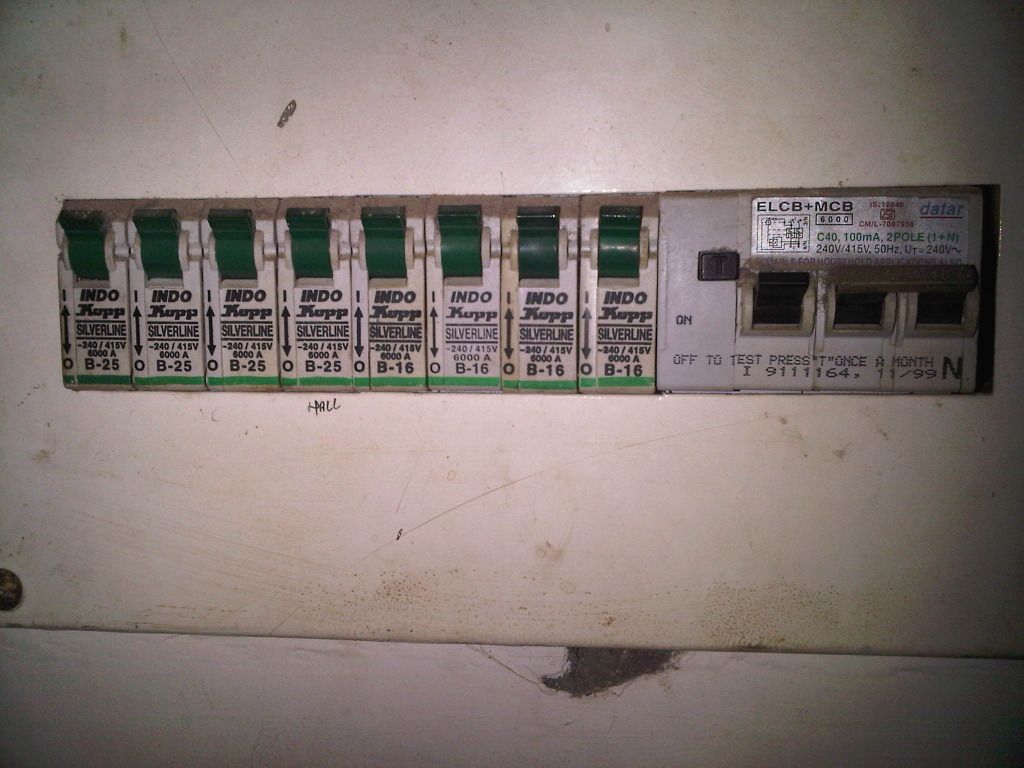

    Here is my house main circuit. if there is anything bad hapning, it shuts off automatically.... i dont know whther its gfci or no....

    [​IMG]
    [​IMG]

  4. ska d

    ska d Spanish Shawl Nudibranch

    Joined:
    Jul 8, 2012
    Messages:
    85
    All breakers are gfci. I dont know much about groundung probes as they pertain to aquariums though.

  5. Marshall O

    Marshall O Giant Squid

    Joined:
    Jun 19, 2012
    Messages:
    3,517
    Location:
    Central MA
    All breakers are not GFCI! The ones that are will actually have a GFCI reset on the breaker itself. The ones he posted are not GFCI.

  6. nanomania

    nanomania Vagabond Butterfly

    Joined:
    May 23, 2011
    Messages:
    1,681
    Location:
    mumbai, india
    if you see that "T" is a button, if pressed, will turn off everything....... what should GFCI look like?? and did u guys read above the photos?

  7. nanomania

    nanomania Vagabond Butterfly

    Joined:
    May 23, 2011
    Messages:
    1,681
    Location:
    mumbai, india
  8. Click Here!

  9. Marshall O

    Marshall O Giant Squid

    Joined:
    Jun 19, 2012
    Messages:
    3,517
    Location:
    Central MA
    What you have is a "Earth Leak Circuit Breaker". This only looks for current in the ground line. A GFCI will also have a test/reset button on the breaker, but will say GFCI. These look for differences in current in the hot and neutral lines as well.

    Here is an article for you: How does an earth-leakage circuit breaker or ELCB work
